On this page you can find measurement data, from the following structural systems:

• • Post-tensioned timber frame
    The main load-bearing structure on the C and D storey



• • Timber-concrete composite floor
    Slab of the C storey



• • Hollow-core timber-concrete composite floor
    Slab of the outer fields on the D storey



• • Bi-axial timber slab
    Slab of the inner field on the D storey



• General data
  Indoor / outdoor climate and dynamic measurements



Coordinate systems on the C & D storey

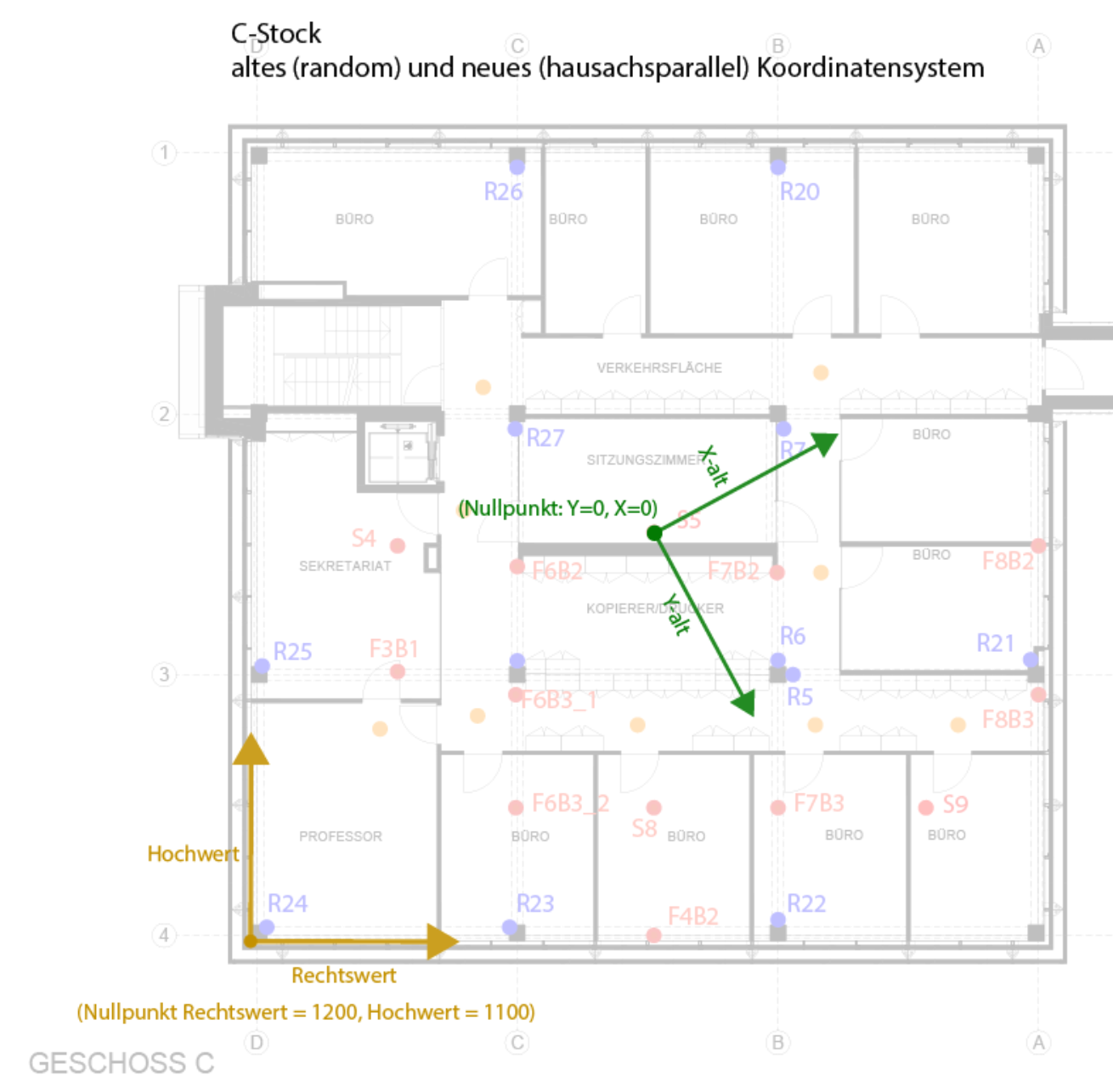

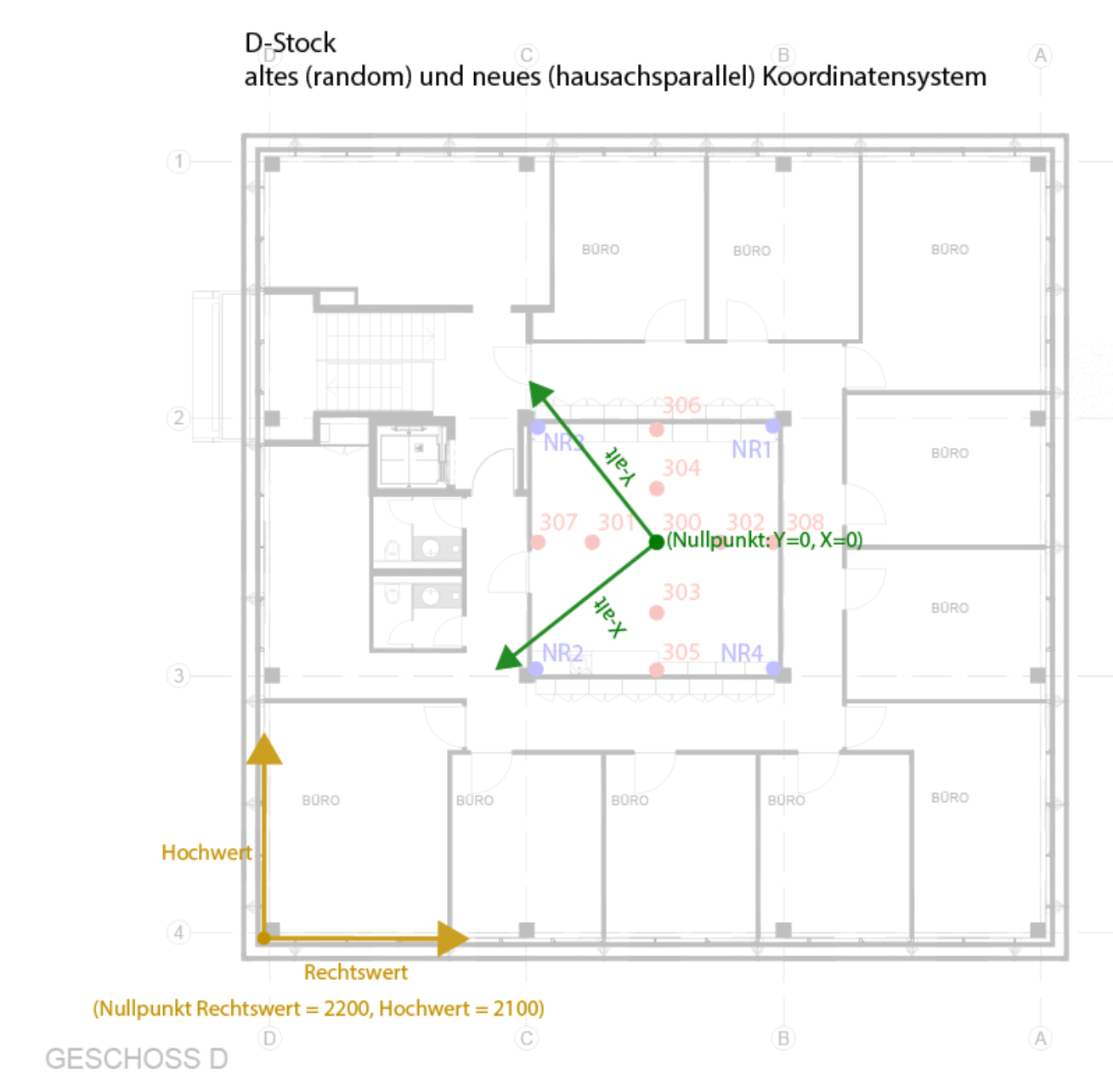

For a better understanding, the images below illustrate the orientation of the two coordinate systems on the C and D storey (final coordinate system in yellow). The x-axis is chosen as the abscissa (“Rechtswert”) and the y-axis is the ordinate (“Hochwert”).
